Electro-5

The original Electro was first introduced exactly 30 years ago.



I have always really loved this bass and it has had a number of changes
over the three decades. Our production has changed considerably in the last few years
and I really wanted to go back and revisit it.

This latest version has the fundamental playability of previous models
but now with some detailed improvements.

Available with 4 or 5 strings and with a fretted, plain or lined fretless fingerboard.
The new Electro-5 creates a stunning sound spectrum.
Everything from warm 'string bass' tones through to punchy mids
and super-clear high frequencies.

The bridge is completely re-designed and features a height adjustable piezo pickup.
It is machined in our workshop from a solid block of Richlite phenolic material.

String spacing : 4-string = 18.3mm. 5-string = 16.5mm.

A single, custom-wound, hum-cancelling pickup is fitted.
It is then encased in a solid hardwood cover and positioned right on the 'sweet spot'.




4-string :
(Export) 2,290 GBP excluding sales tax.
(UK) £ 2,748 including sales tax.

5-string :
(Export) 2,412 GBP excluding sales tax.
(UK) £ 2,895 including sales tax

Includes a Status Lite-flite hard case.

(Excludes shipping and insurance)

We have a very limited number of basses finished and ready to ship.

Please check availability here on our stock pages.




The body of the Electro-5 has a two-piece, hardwood body (mahogany or walnut).

An acoustic chamber is machined into the body before the
book-matched exotic facing is glue on.
This allows the body to resonate and have a warmer, more "open" response.

The three-piece maple neck has a dual-action truss-rod for ease of adjustment and
two graphite strengthening bars for stiffness and long term stability.

Here is a link to the 'Low End Lobster' YouTube review of an earlier Electro model.




Hardwood body with acoustic chamber.

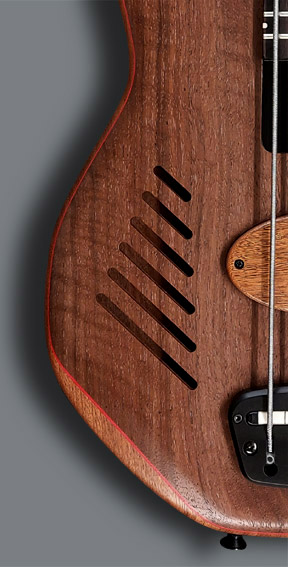

Acoustic vents cut into book-matched facing.

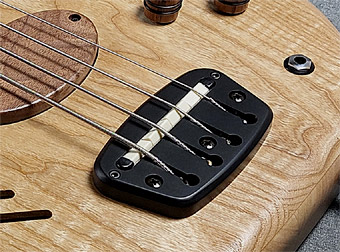

Unique Status piezo bridge.

Height adjustable for easy set-up.

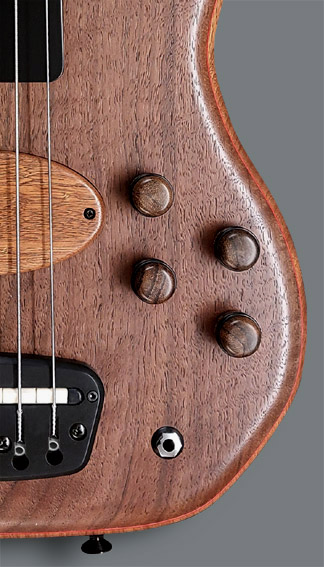

Status custom 18 volt EQ :

Master volume and pickup blend pots.

Pre-shape EQ for each pickup with individual treble cut/boost.

Solid hardwood control knobs.

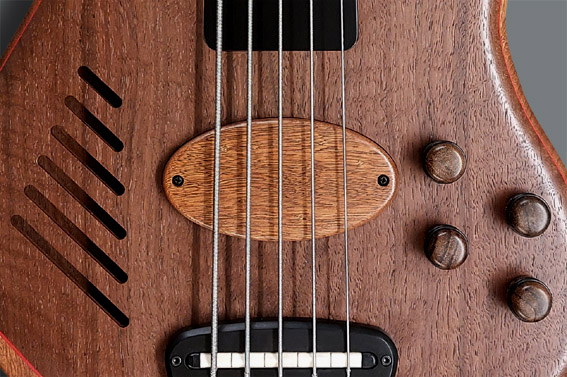

Status custom wound
hum-cancelling pickup.

Set in solid hardwood cover then positioned right on the 'sweet-spot'.








The piezo bridge unit and single neck pickup can be adjusted to give
a great combination of tones :

The piezo produces a wide frequency response and natural, "open" warmth
while the magnetic pickup adds punch and midrange character.

A pickup balance control blends the amount of each pickup
while the master volume sets the overall output.

Each pickup has a custom pre-shaped EQ which is set on the circuit board
but the height frequencies for each pickup can be adjusted independently.






We have a very limited number of basses finished and ready to ship.

Please contact us the check total cost and availability.



Please let us know where you live
so we can calculate the cost including shipping / insurance.

mail@status-graphite.com





Click on all photographs for a larger image


All Status Basses are custom made
in our own workshop here in England.

We also make our own pickups and design and make all EQ boards.

All instruments are supplied in a Status LITE FLITE hard case.



PLEASE NOTE

Due to the variations in photography, computers and monitors,
there will always be some variations in image quality and colours.





.
